A2K-MPT-2 Micro Power T-Piece
The A2K-MPT-2 is a simple, safe and efficient method of powering an NMEA 2000 network.
NOW WITH IMPROVED STRAIN RELIEF!
The Micro Power T can easily provide power to the NMEA 2000 bus with micro fit connectors to enable ‘plug and play’ connectivity.
The Actisense designed connectors are quality engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.
The Actisense specified cable is UL certified, the three-metre cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.
To order the Micro Power T-Piece, please use part number A2K-MPT-2.
Stock: available
Available on backorder
Tech Specs
| Electrical | |
| Rated Current | 4A (each feed) |
| Rated Voltage | 60VDC |
| Mechanical | |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PA66 (30% Glass Filled), Black |
| Contact Polarisation | Standard M12 -“A”- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, black |
| Housing | PVC, black |
| Cable Jacket Material | 0.8mm Nom. PVC, orange |
| Cable Outer Diameter | 6.7mm ±0.254mm |
| Cable Length | 3M |
| Wire Length | 100mm (7mm stripped) |
| Wire Jacket | PVC |
| Wires | 18 AWG (stripped and tinned) |
| Drain | 18 AWG (34 strand tinned copper) |
| Shield | Al-mylar |
| Weight | 290g |
| Approvals and Certifications | |
| NMEA 2000 Approved | |
| RoHS Compliant | |
| UL Certified Cable (E137250) | |
| Protection | IP67 (when mated) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |

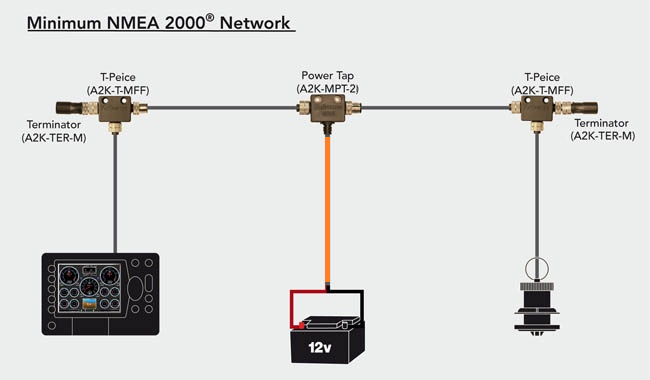

Network Diagram
