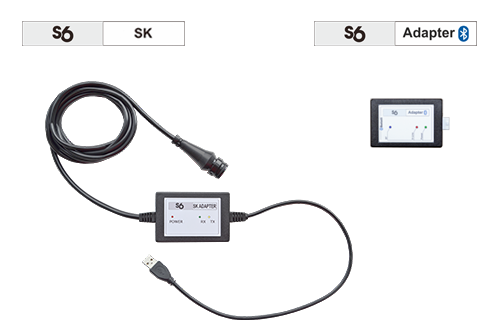

S6 SERVICE ADAPTERS
November 24, 2025

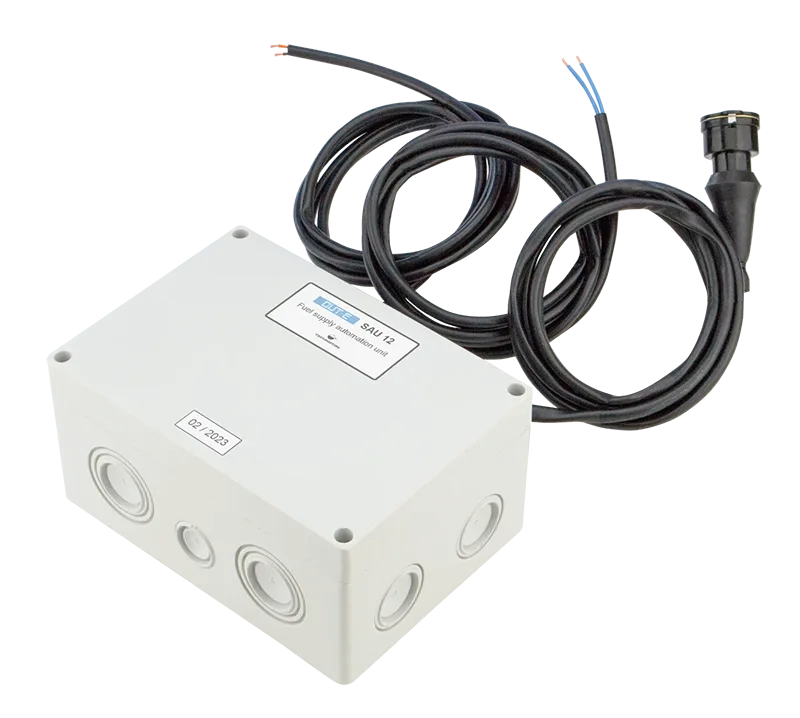

DUT-E SAU FUEL SUPPLY AUTOMATION UNIT
November 24, 2025
DFM MK mounting kits are designed to connect the Fuel Flow Meters DFM to the engine fuel system using pipes 8 and 10 mm in diameter.
Stock: available
Why to use DFM MK mounting kits?
- made of durable material – steel;
- made using hot pressing technology;
- DFM MK elements have zink coating;
- increased flow area to avoid influence of fuel flow;
- high-quality tooling – no burr;
- nipples, valves, banjo bolts have sealing holes.
Attention! We highly recommend to use DFM MK mounting kits when installing DFM fuel flow meters to ensure reliability and accuracy of fuel consumption data.
DFM MK mounting kits composition
| # | Name | DFM MK20 | DFM MK40 | DFM MK45 | DFM MK90 | DFM MK100 | DFM MK DIFF11 | DFM MK DIFF21 |
| 1 | Banjo bolt BB 14 | 3 | 3 | 2 | 2 | 3 | 6 | 4 |
| 2 | Banjo bolt BB 16 | – | – | 1 | – | – | – | 4 |
| 3 | Banjo bolt double BB 14/2 | 1 | 1 | 1 | 1 | – | – | – |
| 4 | Banjo fitting BF 14/8 | 8 | – | – | 6 | 4 | – | – |
| 5 | Banjo fitting BF 14/10 | – | 8 | 6 | – | – | 8 | 4 |
| 6 | Banjo fitting BF 16/10 | – | – | 2 | – | – | – | 4 |
| 7 | Non-return valve K10 | 1 | 1 | – | 1 | 1 | 2 | – |
| 8 | Non-return valve K15 | – | – | 1 | – | – | – | 2 |
| 9 | Bypass valve К20 | 1 | 1 | 1 | – | – | – | – |
| 10 | Nipple adapter NA 14-14 | 1 | 1 | 1 | 1 | – | – | – |
| 11 | Nipple adapter double NA 10-14/2 | 1 | 1 | 1 | – | – | – | – |
| 12 | Nipple adapter double NA 10-16/2 | – | – | 1 | – | – | – | – |
| 13 | Nipple adapter NA 14-20 | 1 | 1 | 1 | – | 1 | – | – |
| 14 | Nipple adapter NA 10-14 | 1 | 1 | 1 | – | – | – | – |
| 15 | Bolt plug BP 14 | 1 | 1 | 1 | 1 | 1 | – | – |
| 16 | Bolt B8x16 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 17 | Nut N8 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 18 | Washer W8 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 19 | Lock washer WL8.65 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| 20 | Hose clamp HC 10-16 | 8 | 8 | 8 | 6 | 4 | 8 | 8 |
| 21 | Copper washer CW 14-19 | 16 | 16 | 12 | 14 | 11 | 16 | 8 |
| 22 | Copper washer CW 16-21 | – | – | 4 | – | – | – | 8 |
| 23 | Copper washer CW 20-26 | 1 | 1 | 1 | – | 1 | – | – |
