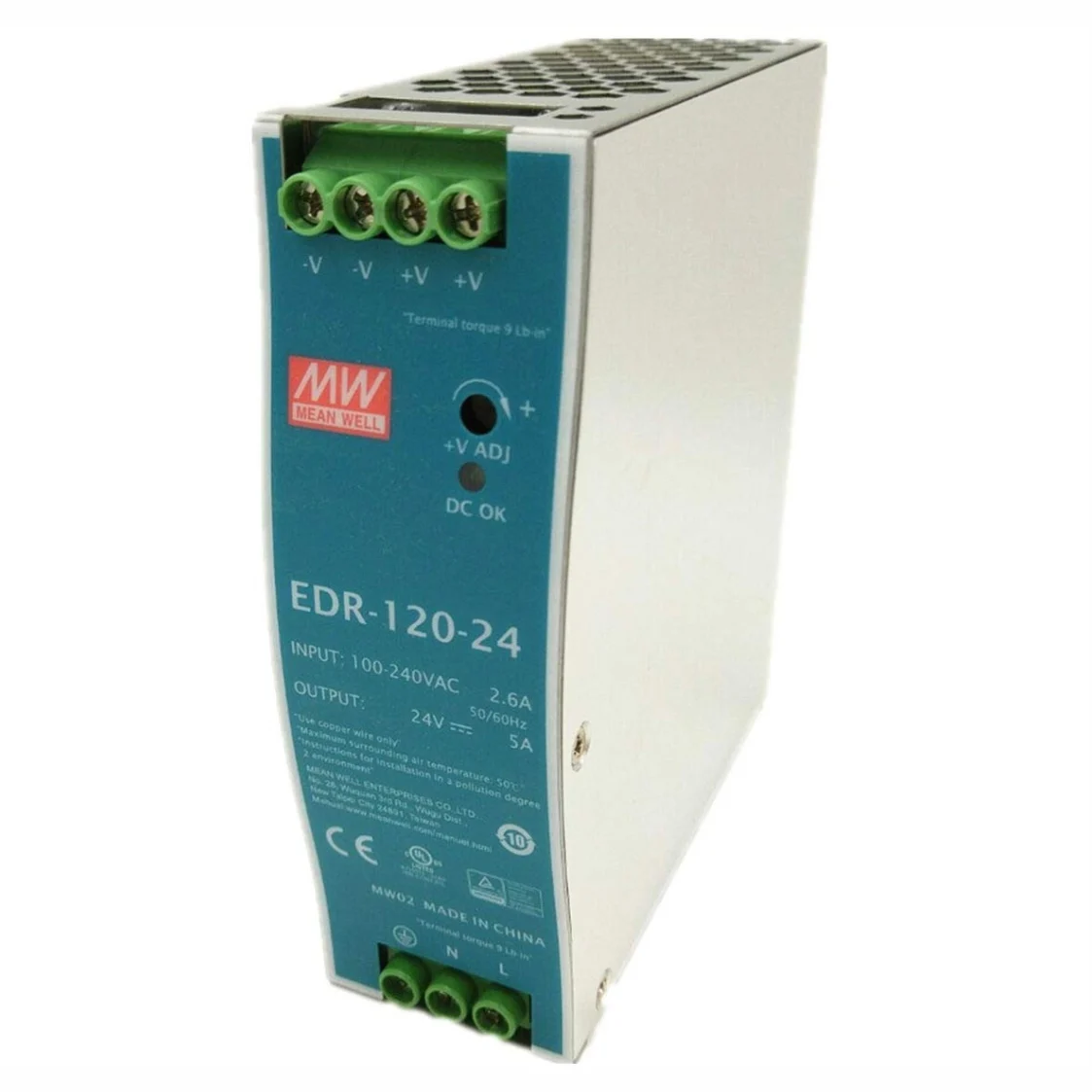

EDR-120-24 MEAN WELL 120W 24V Single Output Industrial DIN-Rail Power Supply
The EDR-120-24 MEAN WELL is an economical, slimline 120W AC/DC DIN-rail power supply engineered to provide stable 24V DC power to industrial control cabinets, automation panels, and marine telemetry enclosures. Delivering a continuous 24V DC output at 5A, the EDR-120-24 MEAN WELL features a narrow 40 mm wide metal housing designed to maximize rail space on standard TS-35/7.5 or TS-35/15 mounting tracks.
Equipped with a wide single-phase universal input range ($90–264\text{ VAC}$ / $127–370\text{ VDC}$), the EDR-120-24 MEAN WELL incorporates built-in active protection against short circuits, overloads, overvoltages, and overtemperatures. Featuring a high efficiency rating of up to 87.5% and free-air convection cooling across a wide temperature range (-20°C to +60°C), it serves as a highly reliable primary power source for PLCs, SCADA gateways, sensors, and field actuators.
Key Features of the EDR-120-24 MEAN WELL
-
High Power Density & Slim Footprint: 40 mm ultra-slim width saves valuable DIN-rail space inside crowded electrical enclosures and control boxes.
-
Universal Single-Phase Input: Operates on full-range $90–264\text{ VAC}$ ($47–63\text{ Hz}$) or $127–370\text{ VDC}$ input without requiring manual selector switches.
-
Adjustable Output Voltage: Front-panel trimming potentiometer allows output voltage adjustment from 24V to 28V DC to compensate for wire voltage drops.
-
Comprehensive Circuit Protection: Features constant current limiting for overload protection, auto-recovery short circuit protection, overvoltage cutoff, and thermal shutdown.
-
Free-Air Convection Cooling: Heavy-duty perforated metal casing ensures efficient heat dissipation without noise-generating or failure-prone cooling fans.
-
Industrial Safety Compliance: Certified according to UL508, EN62368-1, and BS EN/EN55032 (Class A) standards for industrial control hardware.
Primary Applications
-
Industrial Automation & PLC Panels: Powering 24V DC programmable logic controllers, remote I/O modules, HMIs, and relay banks
-
Marine & Vessel SCADA Enclosures: Supplying stabilized power to engine telemetry monitoring devices, CAN-bus gateways, and sensors
-
Factory Control Cabinets: Providing continuous 24V DC bus voltage for solenoid valves, motor drives, sensors, and safety interlocks
Technical Specifications
| Parameter Category | Specification Details |
| Manufacturer / Brand | MEAN WELL |
| Part Number / Keyword | EDR-120-24 MEAN WELL (EDR-120-24) |
| Rated Output Voltage | 24 V DC (Adjustable 24V to 28V DC) |
| Rated Output Current | 0 to 5 A |
| Rated Output Power | 120 W |
| Input Voltage Range | $90–264\text{ V AC}$ / $127–370\text{ V DC}$ |
| Efficiency (Typ.) | 87.5% |
| Ripple & Noise (Max.) | $100\text{ mVp-p}$ |
| Mounting Style | DIN Rail TS-35/7.5 or TS-35/15 |
| Operating Temperature Range | -20°C to +60°C (with output derating above 50°C) |
| Dimensions (W × H × D) | $40 \times 125.2 \times 113.5\text{ mm}$ |
| Safety Standards | UL508, TUV BS EN/EN62368-1, EAC, CE approved |
Package Contents
-
1 × EDR-120-24 MEAN WELL 120W 24V Industrial DIN-Rail Power Supply Unit
-
Terminal Cover Cap & Mounting Specification Leaflet
