Technical characteristics:
- Digital temperature controller.
- Relay with Power Mode function: DC Power Supply.
- Operating Voltage: 36V.
- No Battery.
- Dimensions: 84x69x34mm
- Brand: ANJKFLUR.
Stock: available

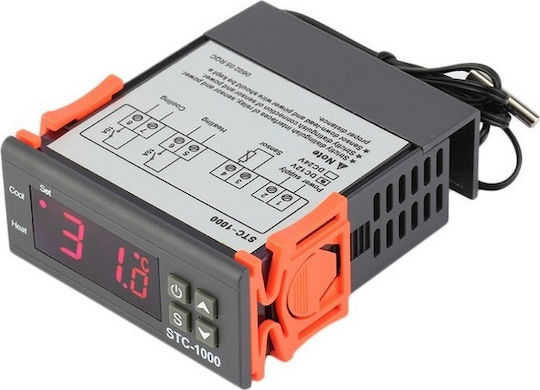

The Rosfix STC-1000 is an industrial-grade dual-stage digital temperature controller engineered for accurate automatic switching between heating and cooling systems. Built with dual 10A relay outputs, the Rosfix STC-1000 provides an all-in-one automation solution for maintaining precise climate conditions in industrial control cabinets, refrigeration units, incubators, aquariums, and homebrewing setups.
Equipped with a high-accuracy waterproof NTC temperature sensor probe, the Rosfix STC-1000 measures across a broad operating range from -50.0°C to +99.9°C with 0.1°C resolution. Its digital LED display provides real-time temperature feedback, while configurable hysteresis settings and compressor protection delays prevent short-cycling and extend the service life of connected equipment.
Key Features of the Rosfix STC-1000
-
Dual Stage Switching: Dedicated heating and cooling relay outputs (10A / 250V AC) allow simultaneous control of heaters and cooling fans or compressors
-
High-Precision Sensor: Includes a 1-meter waterproof NTC probe for consistent temperature reading across wet or high-humidity environments
-
Protective Delay Settings: Configurable compressor delay time (1 to 10 minutes) safeguards refrigeration units against power surges and rapid cycling
-
Simple Panel Mount Design: Fits standard industrial panel cut-outs (71 × 29 mm) with clip-in brackets for fast installation
-
Non-Volatile Memory: Retains all programmed temperature set points, calibration offsets, and differential values during power loss
Technical Specifications
| Specification | Value / Detail |
| Brand / Model | Rosfix STC-1000 |
| Product Type | Industrial Digital Thermostat & Controller |
| Supply Voltage | 220V AC ±10%, 50/60 Hz |
| Temperature Control Range | -50.0°C to +99.9°C |
| Resolution / Accuracy | 0.1°C / ±1°C (-50°C to +70°C) |
| Relay Contact Capacity | 10A / 250V AC (Separate Heating & Cooling Relays) |
| Temperature Sensor | NTC Sensor (1 m waterproof probe included) |
| Power Consumption | ≤ 3W |
| Panel Cut-Out Dimensions | 71 mm × 29 mm (Front Panel: 75 mm × 34.5 mm) |
Package Contents
-
1 × Rosfix STC-1000 Digital Thermostat Unit (220V AC)
-
1 × Waterproof NTC Temperature Sensor Probe (1 m cable)
-
2 × Mounting Snap Brackets
-
User Manual and Technical Instruction Leaflet
